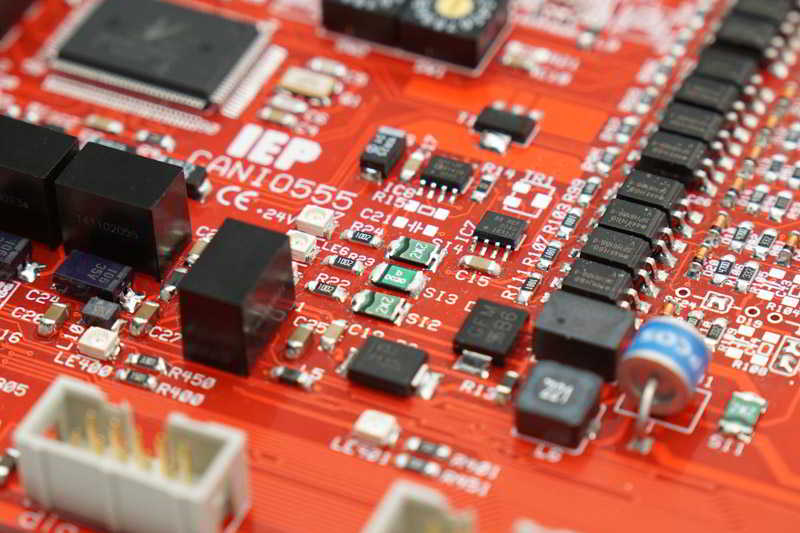

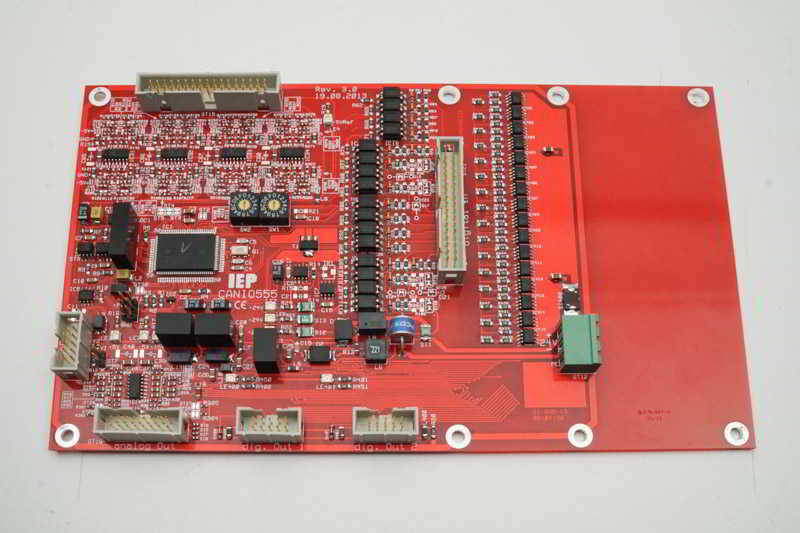

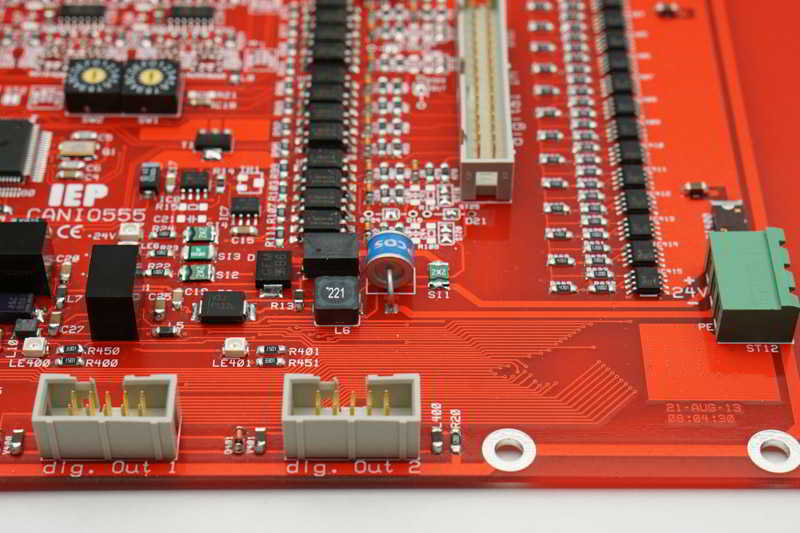

The CAN-555 is designed as an inexpensive, universal I/O extension for systems with CAN bus interface.
Thanks to the flexible configuration of the signal interfaces, it can also be easily integrated into
demanding environments. It can be mechanically attached directly to the IF555-5,
making it the ideal complement. But of course it can also be used with other CAN bus masters without
any problems.
The CAN bus can be operated with baud rates up to 1MBaud. There are 3 options available for
communication with the CAN-AI8-10 module: On the one hand a simple CAN protocol, on the other hand
a CANopen® slave implementation, alternatively a
DeviceNet® slave.
Data acquisition |
16x analog input 0..10V / 0/4..20mA / Pt1000 etc. 10 Bit resolution |
Digital Inputs |
16x gal. insulated, 24V 12x for low-side switches can be used as a counter |
Analog Outputs |
4x 0..20mA Current output, alternative 0..10V |
Digital Outputs |
16x 24V / 0.4A; PWM possible short circuit proof, for inductive loads |
Networking |
CAN-Bus up to 1MBaud |
Supply voltage |
24 Vdc / 100mA |
Size |
232 x 140 x 30 mm |
