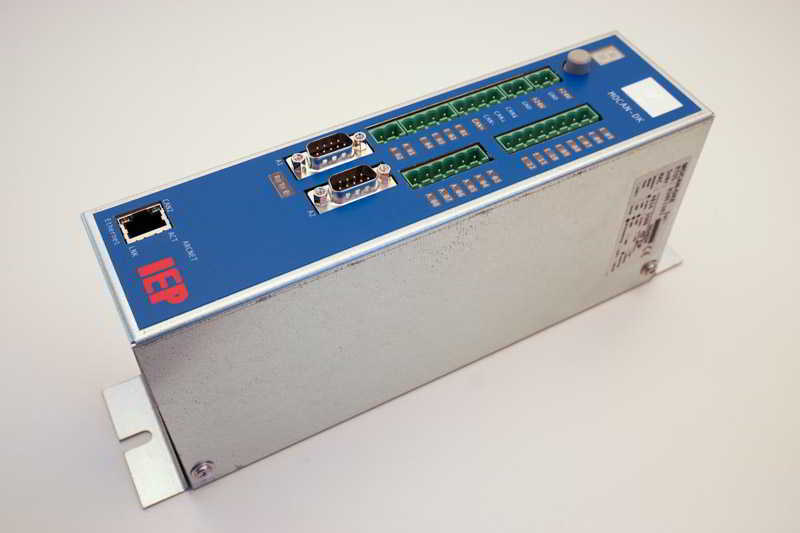

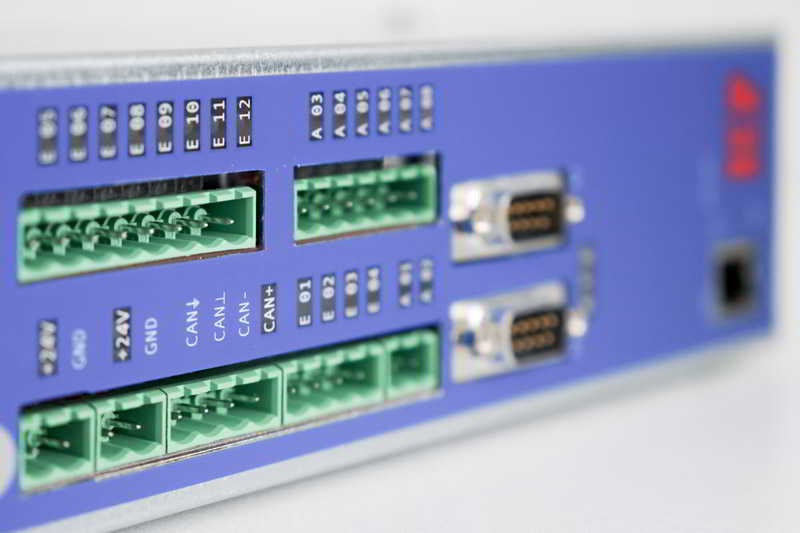

The MOCAN-DK is based on the CORE-5125. With its digital inputs/outputs
and networking options, the MOCAN-DK is ideal, for example, for recording production data directly at the
machine. The two Ethernet interfaces allow simultaneous connection to a machine and integration into the
higher-level company network without the need for an external switch. If necessary, further I/O modules
can be integrated via the CAN bus. The serial interfaces allow the connection of older devices without
Ethernet connection. Due to the high computing power, extensive pre-processing of the collected data is
possible without any problems.
Fast parameterization of the MOCAN-DK is possible via the push-button and the 7-segment display. Data can
be saved or updates can be carried out via the USB connection. All interfaces as well as the inputs/outputs
are galvanically isolated. This effectively prevents potential carry-over or the flow of equalizing
currents, even in larger installations.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Digital Inputs |
4x gal. insulated, 24V / 10mA
optional 4 further inputs
optional 8 further inputs |
Digital Outputs |
2x 24V / 0.5A; short-circuit proof, suitable for inductive loads |
Serial interfaces |
1x RS-232 5-wire, gal. decoupled
optional RS-232 5-wire, gal. decoupled |
Networking |
2x Ethernet 10/100MBaud CAN-Bus up to 1MBaud |
Mass storage |
USB |
Handling |
7-segment display, push-button |
Option |
PoE 802.3af Class 0 (max. 12 Watt, typ. 3.6W) |
Supply voltage |
12-32V / 150mA |
Size |
235 x 63 x 115 mm |
