The PK-TAG coupler is the high-end system of this series. With CAN as an additional fieldbus and
2 RJ45 network interfaces, it can be used as a complex data concentrator; digital I/O couples it

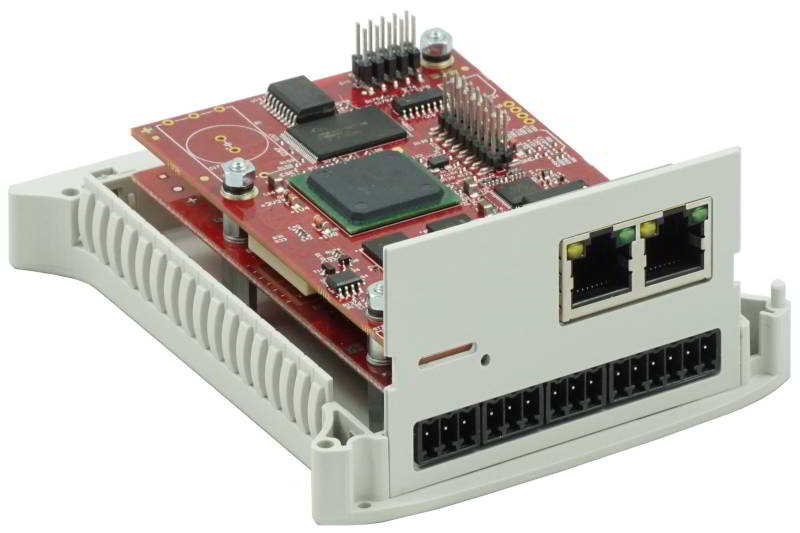

directly to the environment as a sensor/actuator. The 400 MHz PowerPC processor
provides sufficient computing power even for complex tasks.

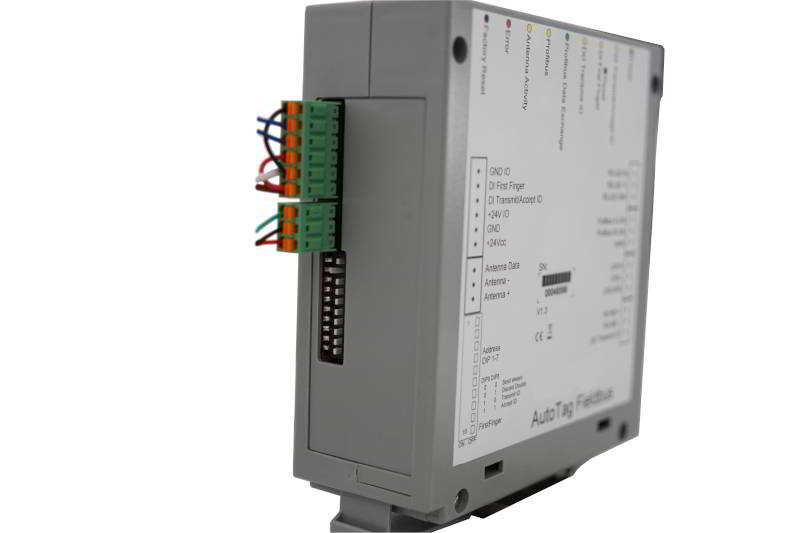

Buses and I/O are connected via standard industrial plug-in/screw terminals.

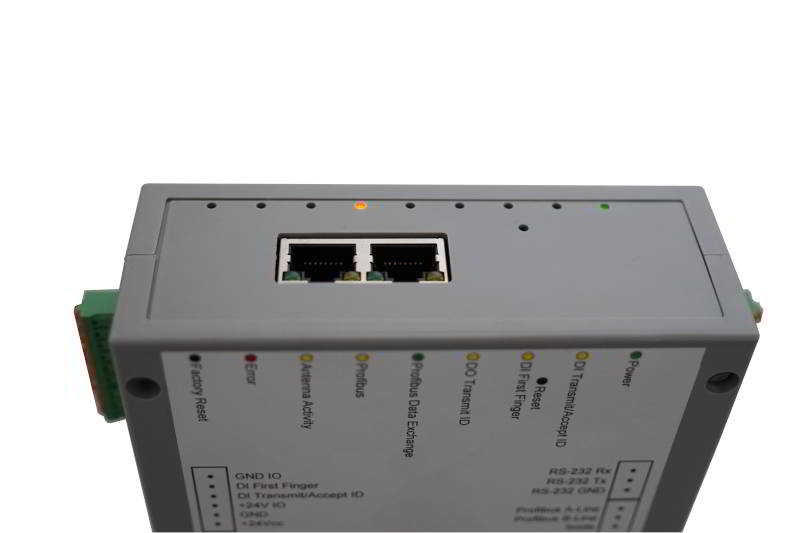

Network can be connected via 2 RJ45 sockets, the integrated mini-switch enables line cabling. Drivers
for UDP and TCP with web server as well as FTP and Telnet are integrated in the system.
If the possibilities of the standard firmware are not sufficient, be it to implement certain
protocols, be it to integrate your own signal preprocessing or be it to develop your own intelligent
subsystems with their own control loops, their own firmware can be developed.
The development is based on the real-time operating system
RTOS-UH.
It provides an interface to the Profibus protocol stack as well as easy access to the serial interface.
A core program is provided as a programming example. Programming is done in
ANSI-C.
Profibus-DP |
DP slave with baud rates up to 12 MBaud |
Ethernet |
2x 10/100 MBit, internal Switch |
Interfaces |
1x RS-232/422/485, 1x RS-232 |
CAN-Bus |
Baud rate up to 1 MBaud, gal. insulated |
Digital output |
1x 24V / 0.5A, short-circuit proof, for inductive loads, gal. insulated |
Digital input |
2x 24V, 2mA, gal. insulated |
Konfiguration |
10x DIP-Switch |
Supply voltage |
24 Volt (9-30V) / 200mA |
Size |
120 x 140 x 45 mm |
Assembly |
DIN rail mounting |
