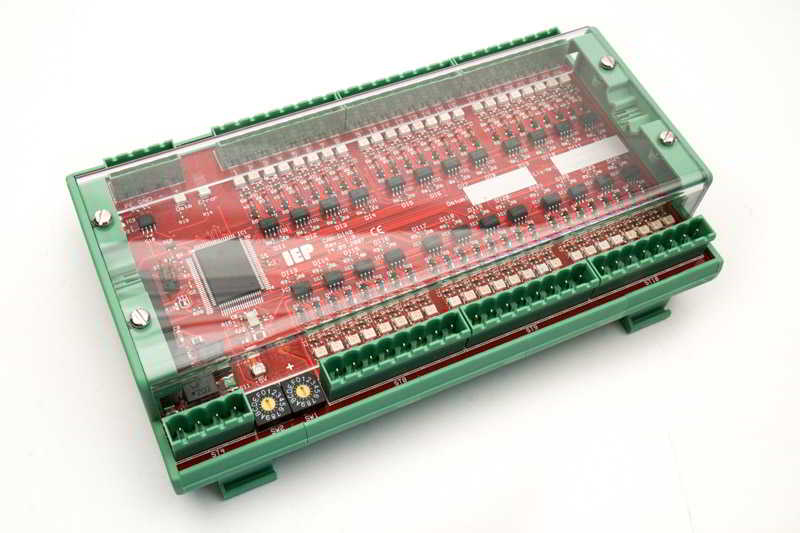

The CAN-DI48 provides 48 digital inputs on one module. The inputs are galvanically isolated
from both the CAN bus and the supply voltage. They can also be used as counting inputs, the
sampling frequency is 50Hz.
The CAN bus can be operated with baud rates up to 1MBaud. There are 3 options available for
communication with the CAN-DI48 module: On the one hand a simple CAN protocol, on the other hand
a CANopen® slave implementation, alternatively a
DeviceNet® slave.
Digital Inputs |
48x 24V / 4mA, gal. insulated |
Isolation |
Galvanic isolation of the supply voltage and inputs |
Networking |
CAN-Bus up to 1MBaud |
Supply voltage |
24V (18V..30V) / 100mA |
Size |
180 x 112 x 50 mm |
