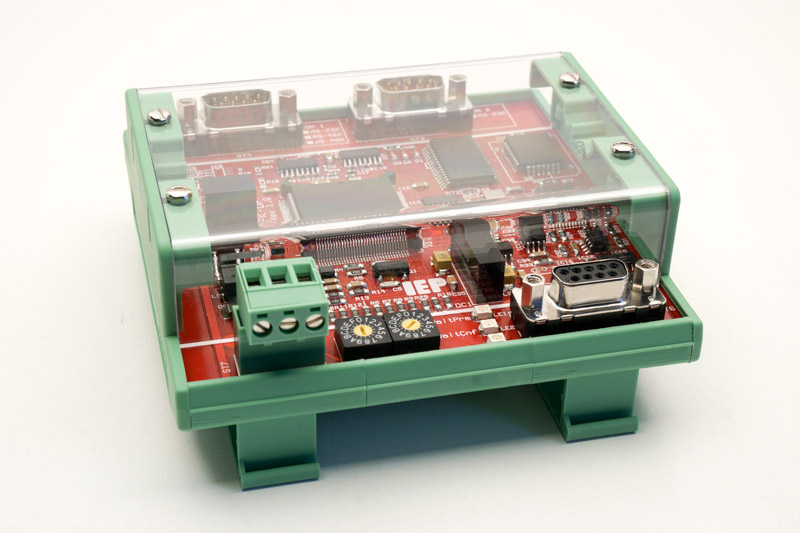

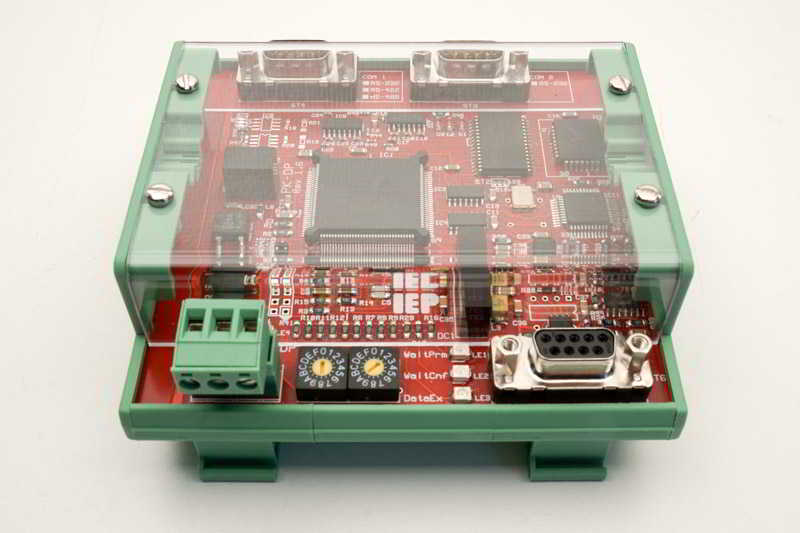

The PK-DP implements an RS-232 - Profibus-DP gateway for 2 serial interfaces. This allows 2 devices
- e.g. scales - to be easily integrated into a Profibus-DP network. An ASCII driver that can be configured
via the GSE file allows integration without further programming effort. The address on the Profibus is set
via 2 hex rotary switches.
If a preprocessing of the data is necessary or useful to relieve the DP master, own drivers can be
realized. The computing power of the PK-DP is more than sufficient even for complex calculations. We are
happy to help you with the realization.
Profibus-DP |
DP slave with baud rates up to 12 MBaud |
Interfaces |
1x RS-232/422/485, 1x RS-232 |
Baud rates |
Serial interfaces up to 76800 Baud |
Supply voltage |
24 Volt (10-36V) / 200mA |
Size |
112 x 112 x 50 mm |
Assembly |
DIN rail mounting |
