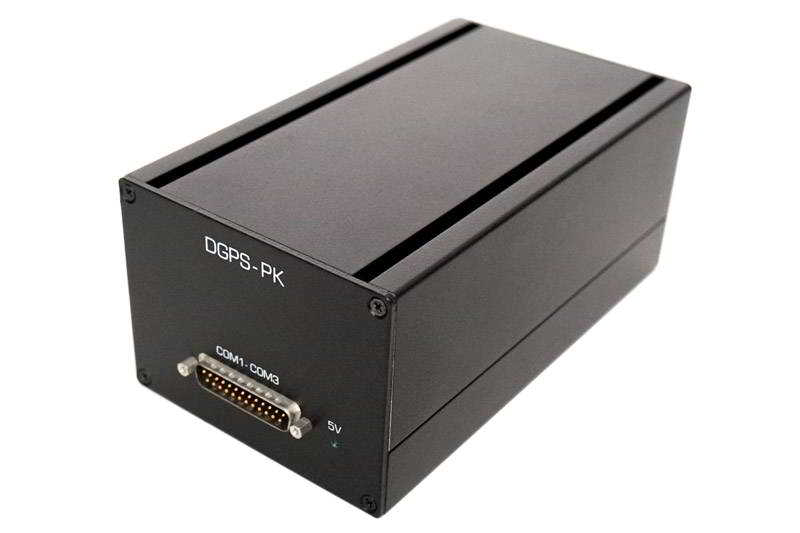

The DGPS interface converter provides 4 individually galvanically isolated RS-232 interfaces. This allows
devices to be coupled in a disturbed environment that may have different potential. 3 interfaces support

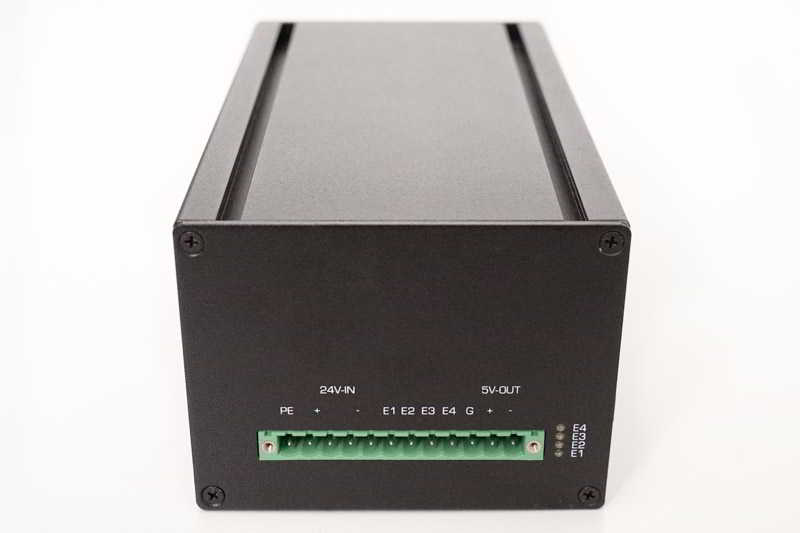

RTS/CTS, the fourth interface is a 3-wire interface. The 4 digital inputs are individually galvanically
isolated and interruptible. The supply voltage is nominal 24 volts. The housing allows installation in
control cabinets or top-hat rail mounting.
The development is based on the real-time operating system
RTOS-UH.
It enables easy access to the serial interfaces. Programming is done in
ANSI-C or
PEARL90.
Interfaces |
4x RS-232 individually gal. insulated |
Handshake |
3x RTS/CTS, 1x 3-Wire |
Baudrate |
up to 115 KBaus |
Digital inputs |
4x 24V, 2mA, gal. isolated, interruptible |
Supply voltage |
24V / 200mA |
Size |
186 x 105 x 80 mm |
Assembly |
DIN rail mounting or switch cabinet |
