Hardware overview

  • All
  • CORE-MODULES
  • Euroboards
  • Complete computer
  • Single-Board-Computer
  • Process couplers
  • CAN-Bus Master
  • CAN-Bus Slave
CORE5125
  • 512 MB DDR2-SDRAM
  • 8 GB Flash
  • 2x Ethernet with PoE
  • µSD-Card
  • USB
  • LCD up to 1280x720 / 24 Bit color depth
  • 4x CAN
  • 8x serial ports
CORE5125

PowerPC with 800 MIPS at < 1 Watt

CORE563
  • 8 MByte PSDRAM
  • 8 MB Flash
  • 2x CAN
  • 8x serial ports
  • 32x A/D converter 10Bit
  • 32x TPU (Time Prozessing Unit)
  • RTC
CORE563

PowerPC with 56 MHz (Not recommended for new design)

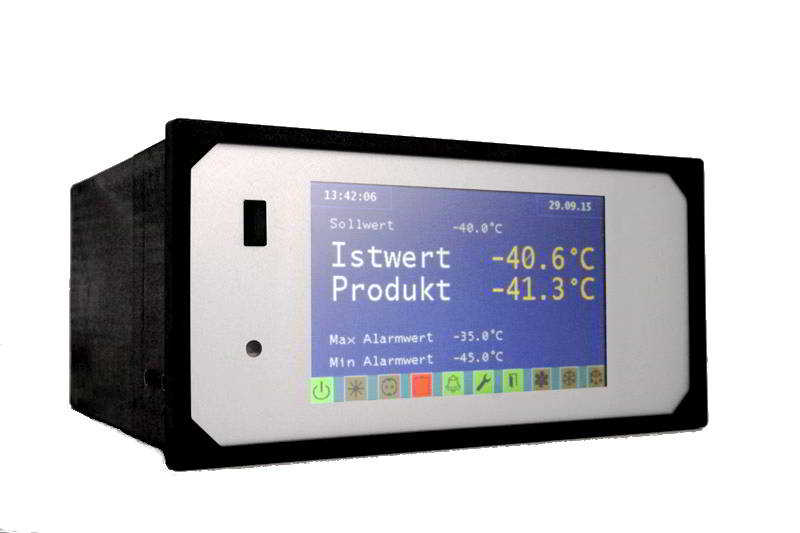

TC3004
  • 5" Touch Screen
  • 4x Pt1000/KTY 3-Wire
  • 100-240V~ Power Supply
  • 6x Triac 16A / 4x Triac 0.9A
  • potential free alarm contact
  • 0-20mA current output
  • gal. isolated RS485
  • 2x 10/100 MBit Ethernet
TC3004

Temperature controller with touch operation

UCT
  • Touchscreen
  • 16x analoge inputs
  • 2x analoge outputs
  • 16 gal. digitale inputs
  • 4x SSR Output
  • 4x potential free Relais
  • 4x Relais 230V
UCT

Universal controller with touch operation

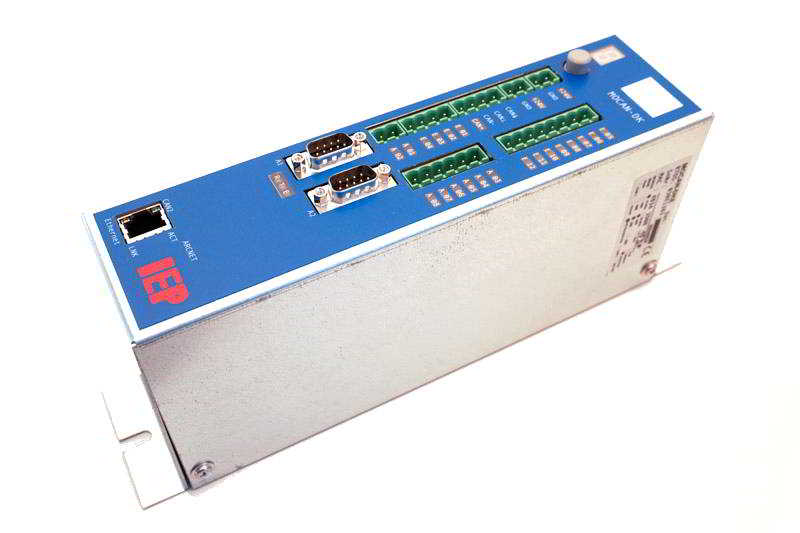

MOCAN-DK
  • Ethernet 10/100 MBit
  • 32x dig. inputs
  • 32x ana. inputs
  • 32x dig. outputs
  • 8x ana. outputs
  • 4x serial ports
  • 2x CAN
  • CF-Card
MOCAN-DK

Process data acquisition

IF555-5
  • 2x Ethernet 10/100 MBit
  • 32x dig. inputs
  • 32x ana. inputs
  • 32x dig. outputs
  • 8x ana. outputs
  • 5x serial ports
  • 2x CAN
  • µSD-Card
IF555-5

ana. + dig. I/O

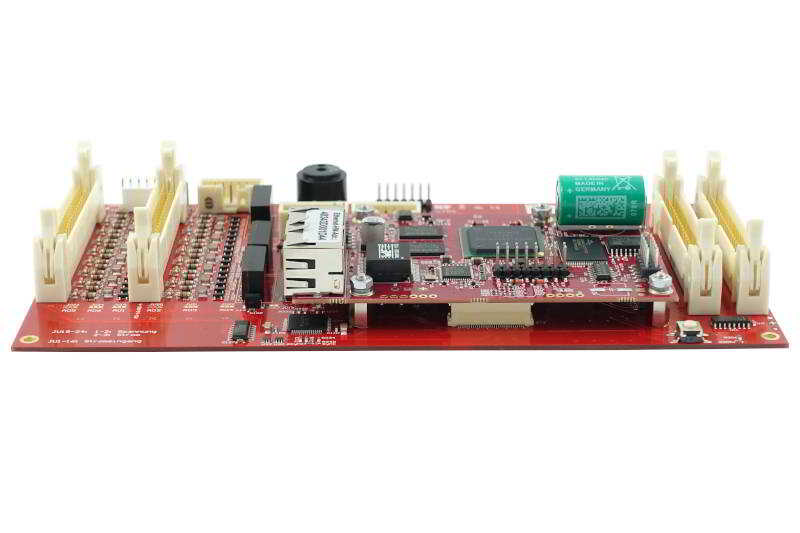

RTP1
  • 2x Ethernet 10/100 MBit
  • 7" TFT incl. Touch
  • 32x dig. inputs
  • 16x ana. inputs
  • 32x dig. outputs
  • 8x ana. outputs
  • 3x serial ports
  • 1x CAN
  • µSD-Card
RTP1

7" TFT, ana. + dig. I/O

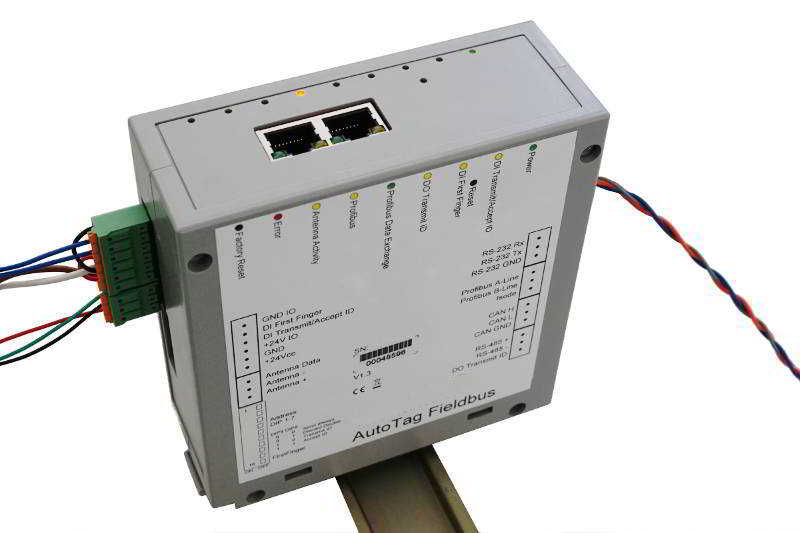

PK-ETH
  • 1x RS-232
  • 1x RS-485
  • Profibus DP Slave 12 MBit
  • CAN Bus
  • 2x 10/100 MBit Ethernet
  • 2x gal. dig. inputs
  • 1x gal. dig. Ausgang
PK-ETH

Process coupler ProfibusDP, Ethernet Fieldbus

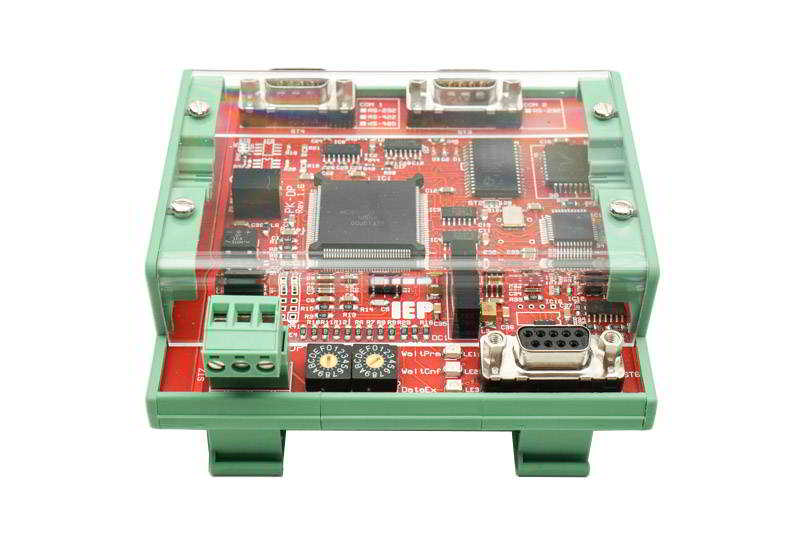

PK-DP
  • 1x RS-232
  • 1x RS-232 or RS-422/485
  • Profibus DP Slave 12 MBit
  • free ASCII driver incl. GSD file
  • own driver possible
  • 24 Volt Power supply
PK-DP

Process coupler ProfibusDP <-> RS232/422/485

MOCS-5200
  • 128 MB DDR-RAM
  • 32 MB Flash
  • 64 KB E²PROM
  • 2x Ethernet with PoE
  • RS-232
  • 2x CAN
  • PBus 8/16 bit wide
  • various add-ons available
MOCS-5200

Euroboard with 400 MHz computing power

MOCS
  • SRAM up to 1 MB
  • EPROM up to 1 MB
  • FLASH up to 1 MB
  • RTC
  • RS-232
  • PBus connection
  • TPU
MOCS Euroboard

MC68332 with 16 MHz (Not recommended for new design)

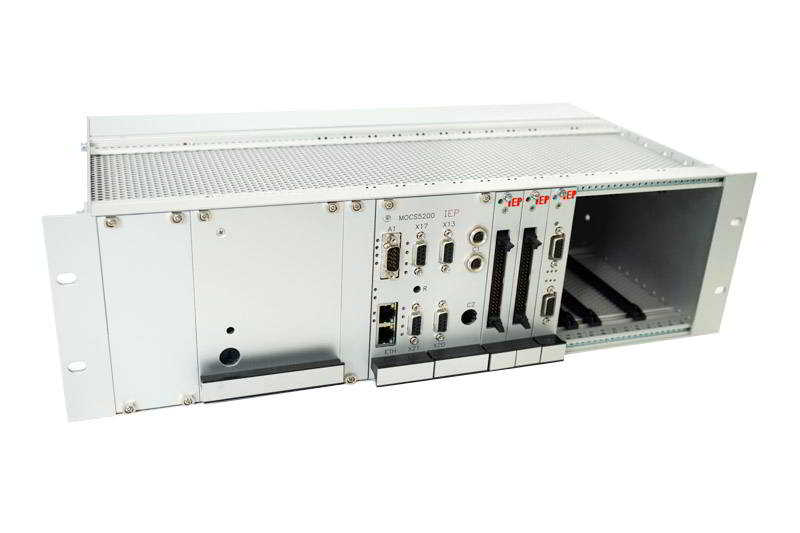

PBus Europakarten
  • ADDA12/4: analog I/O
  • DIO: 8 dig. I/O each
  • DIO64: 64 TTL I/O
  • MOTCO: 2x motor controller
  • SER8: 8x RS-232
PBus Euroboards

various I/O boards

MOCAN-METH
  • 2x 10/100 MBit Ethernet
  • RS-232 / RS-485 gal. insulated
  • 2x TTY 20mA
  • 2x CAN
  • 4x dig In.
  • 2x dig. Out
  • DIP / Hex rotary switch.
MOCAN-M2

Data acquisition with Ethernet connection

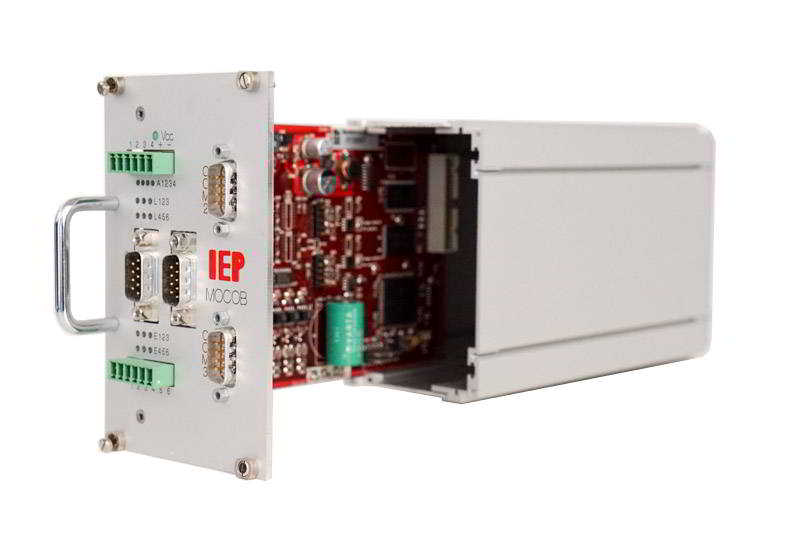

MOCOB
  • 6x dig. In
  • 4x dig. Out
  • 3x RS-232/422/485
  • CAN
MOCOB-V3

Intelligent I/O with CAN-Bus connection

RTTB
  • MPC561 / 56 MHz
  • 10 MBit Ethernet
  • 2x CAN
  • 16x TPU
  • MIOS
  • 32x QADC
  • BUS-Port
  • SPI
RTTB

Real-Time-Training-Board

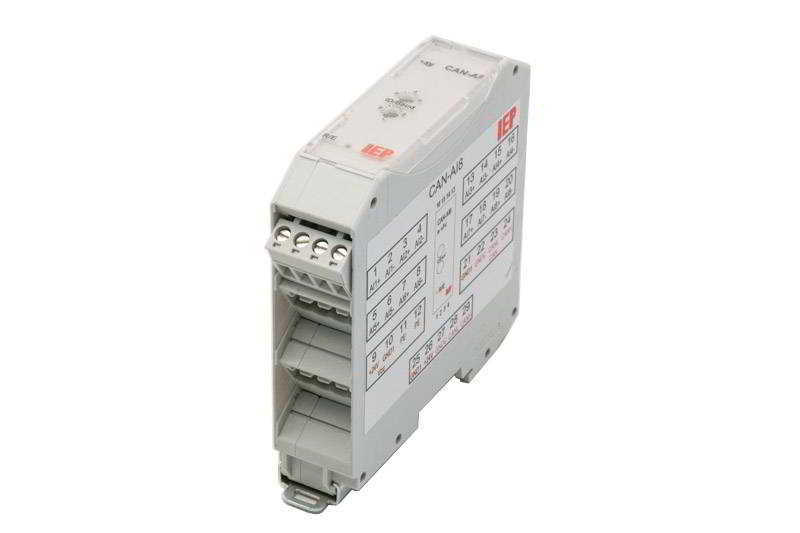

CAN-AI8-10
  • 8 diff. inputs
  • 10 Bit resolution
  • 0-10V / ±10V
  • 0/4-20mA
  • Pt100 usw.
  • 24V Power supply
  • Mounting on DIN rail
CAN-AI8-10

8 analog inputs

CAN-AI8-16
  • 8 diff. inputs
  • 16-24 Bit resolution
  • 0-10V / ±10V
  • 0/4-20mA
  • Convert 2 channels parallel
  • 24V Power supply
  • Mounting on DIN rail
CAN-AI8-16

8 analog inputs, 16-24 Bit resolution

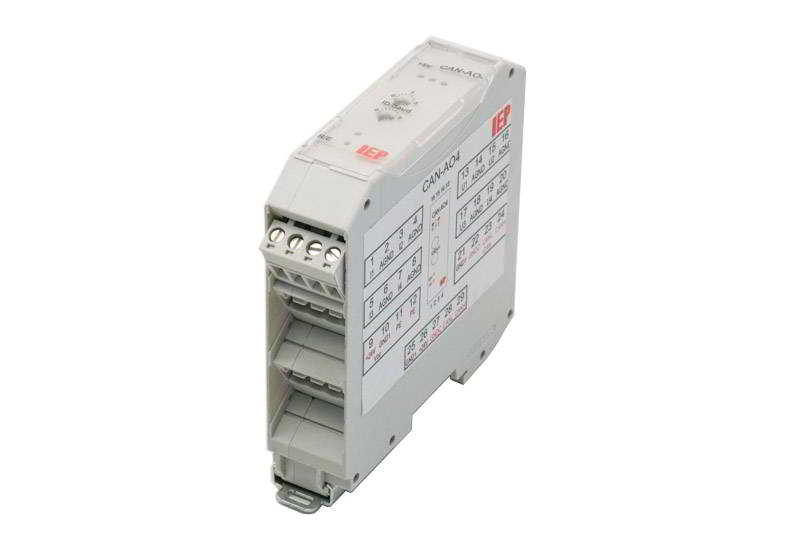

CAN-AO4
  • 4 analog outputs
  • 12 Bit resolution
  • 0-10V / ±10V
  • 0/4-20mA
  • 24V Power supply
  • Mounting on DIN rail
CAN-AO4

4 analog outputs 12 Bit (Voltage/Current)

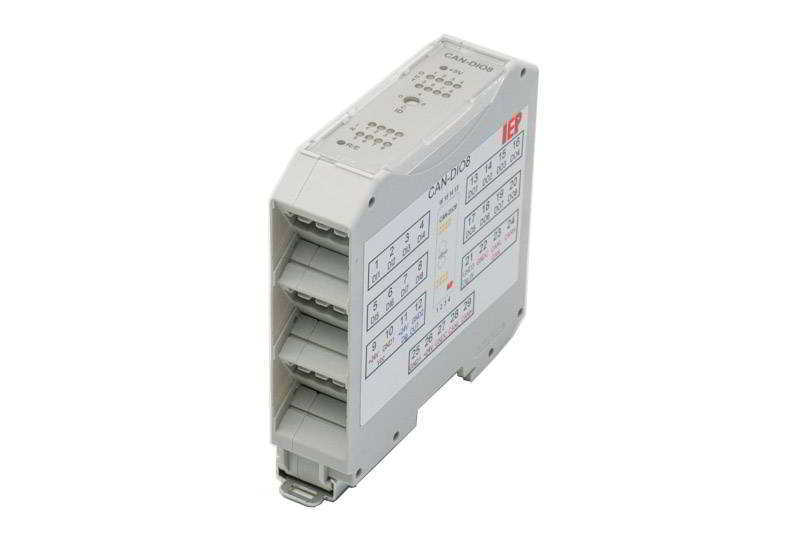

CAN-DIO8
  • 8 dig. In
  • usable as counter
  • 8 dig. Out
  • 24V / 0.4A
  • inductive loads
  • 24V Power supply
  • Mounting on DIN rail
CAN-DIO8

8 dig. I/O each

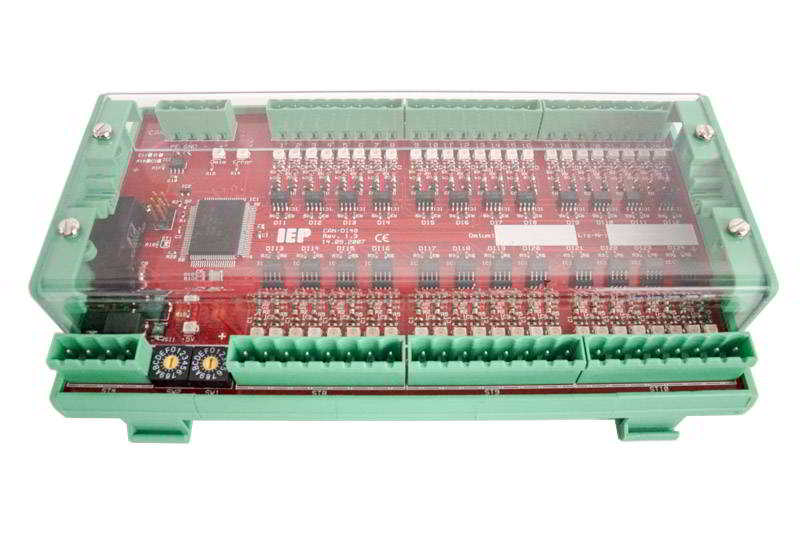

CAN-DI48
  • 48 dig. In
  • usable as counter
  • 24V Power supply
  • Mounting on DIN rail
CAN-DI48

48 digital inputs for 24 V

CAN-555
  • 16 ana. In
  • 4 ana. Out
  • 10 Bit resolution
  • 16 dig. In
  • usable as counter
  • 16 dig. Out
  • 24V Power supply
CAN-555

dig. and ana. I/O extension e.g. for IF555-5

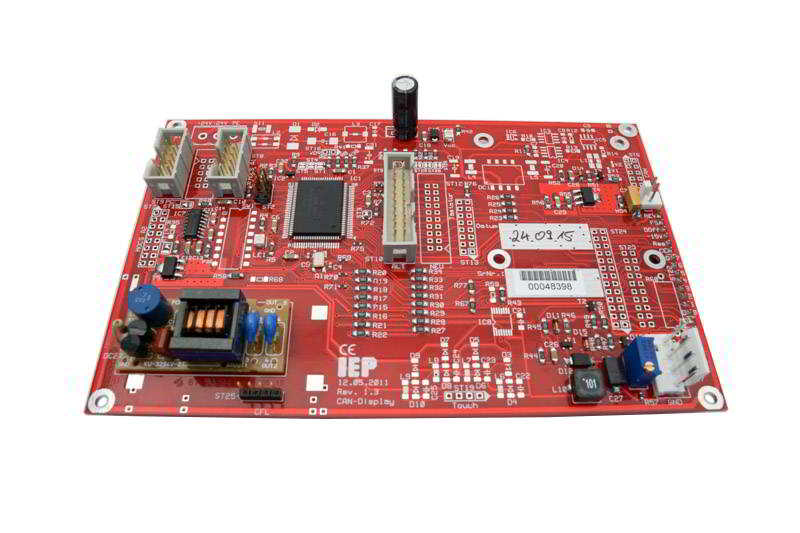

CAN-DISP
  • Display with Touch
  • 240x128 Pixel
  • 24V Power supply
CAN-DISP

Display with CAN-Bus connection

CAN-M-Bus
  • M-Bus Master
  • up to 50 Slaves
  • RS-232 up to 115 KBaud
  • CAN-Bus up to 1 MBaud
CAN-M-Bus

M-Bus Master up to 50 slaves

Leistungssteller
  • up to 12 dig. In
  • up to 6 dig. Out
  • up to 8 Pt100
  • up to 4 ana. In
  • 2 ana. Out
  • up to 8 zero voltage switches
  • 230 V / 10 A
Circuit breaker

up to 8 Kanal circuit breaker 480V/16A

8 Kanal Relais Koppel Modul
  • with Relais or SSR
  • Manual switch On/Off/Auto
  • Supervision
  • Drive with 24V
RKM

8 Channel Relay Coupler Module
