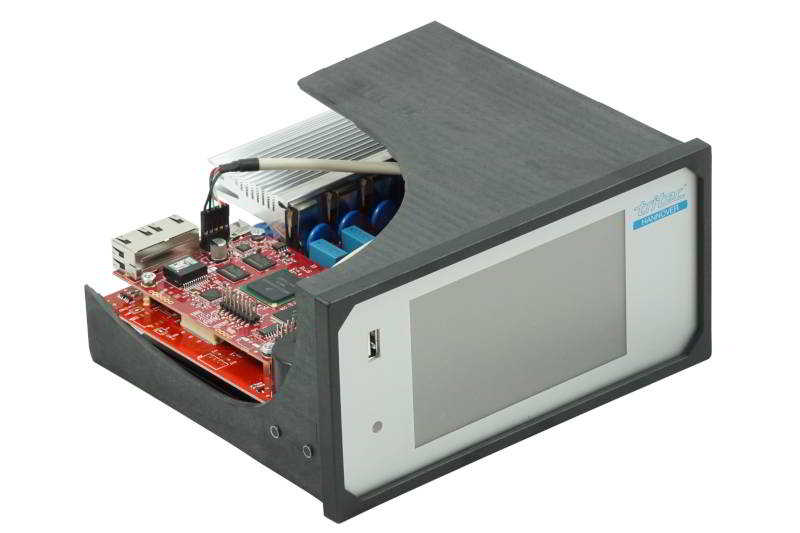

The TC3004 is a compact controller in a standard slide-in housing, designed to control
refrigeration or heating systems. Visualisation and operation are carried out via a 5″
colour display with touch screen, Ethernet and USB for system integration. Up to 4 temperatures
can be measured with Pt1000 or KTY sensors. A total of 10 outputs are available for switching
power consumers via triacs.
If the TC3004 is equipped with a commercially available backup battery, it records the
temperatures for at least 72 hours even in the event of a power failure, and the alarm
system remains active.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Data acquisition |
4x temperature input Pt1000 / KTY, 2- or 3-wire; 16 Bit resolution |
Digital Inputs |
4x for detection of switches or pressures |
Analog Output |
0...20mA Current output, alternative 0...10V |
PWM Output |
0...150Hz, 5V-Level |
Alarm output |
potential-free relay changer 2 Contacts in parallel |
Power Outputs |
total maximum 18A can be switched, 6x Triac 230Vac/16A 4x Triac 230Vac/0.9A |
Networking |
RS-485 gal. insulated 2x Ethernet 10/100MBit |
Signal generator |
acoustic signal transmitter; 3.5 KHz; 100dB in 10cm distance |
Handling |
TFT-colour display 5″(12,5cm) 800x480 Pixel with Touchpanel |
Emergency operation |
Battery buffering for 72 hours with 12V / 7Ah |
Supply voltage |
100-230 Vac / max. 16A; internal consumption 10W |
Size |
190 x 96 x 160 mm |
